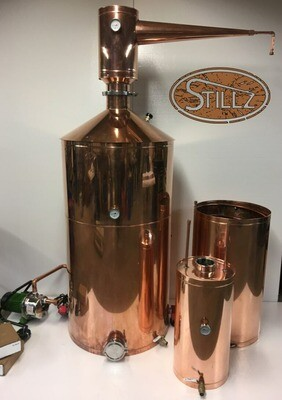

Same as our 100 Gallon with Added Section of Copper 18 inches of Height for a 150 gallon,
The Main Pot is 30 inches by 71 inches Tall with the Whiskey Head on it and 79 inches Tall with the Reflux Column.
The Reflux Head is 6″ x 42″ (four total sections) includes a Temperature Gauge and Three, 2” Sight Glasses. Three Sections get a single site glass and the Top section is The Dephlegmator.
The 20 gallon Thumper is 15″ x 27″ Tall with a Drain and 4 inch Stainless Ferrule Cap Logic System.
The Worm is a 50 gallon Copper Worm that is 20″ x 36″ Tall with a Half inch Coil and IN/OUT Hose Connections.
The Pump System for agitation is a 1200 Gallon per Hour Stainless Head and a 1 1/2 Horsepower 115 V Heavy Duty Motor.
The 2 PID Controllers are 220 V with 11,000 total wattage for the elements.That’s 2 elements at 5500 W each.
The whole still put together is 7 feet long, You Will Need a Level Area and A Source of Cool Running Water Such as a Garden Water Hose.
